Interpreting and explaining the 13C NMR spectrum: 2-bromo-2-methylpropane (tert-butyl bromide)

[Author © Dr Phil Brown PhD: Doc Brown's advanced level organic chemistry exam revision notes suitable for students of UK A level chemistry courses & US K12 grade 11, grade 12 and AP honors chemistry courses: Molecular spectroscopy analysis of 2-bromo-2-methylpropane (13C NMR spectra) [spectra page updated April 1st 2026 *]

 email doc brown Re-edit 13C NMR spectrum of (CH3)3CBr

 This is a BIG chemistry website, PLEASE take time to explore it

 Links associated with 2-bromo-2-methylpropane

 C-13 NMR spectroscopy - spectra index  *  [privacy policy, cookies and disclaimer]

See also comparing infrared, mass, 1H NMR & 13C NMR spectra of 4 halogenoalkane isomers of C4H9Br

Introductory note on the 13C NMR spectrum of 2-bromo-2-methylpropane

Students and teachers please note that my explanation of the carbon-13 NMR spectrum of 2-bromo-2-methylpropane is designed for advanced, but pre-university, chemistry courses.

The description does not involve the chemical shift δ spin-spin coupling effects for 2-bromo-2-methylpropane and the relative size of the carbon-13 NMR shifts does not give the ratio of the carbon atoms in the different non-equivalent chemical environments of the 2-bromo-2-methylpropane molecule.

The most common solvent used for investigating the 13C NMR spectrum of compounds like 2-bromo-2-methylpropane, is CDCl3 and other deuterated solvents.

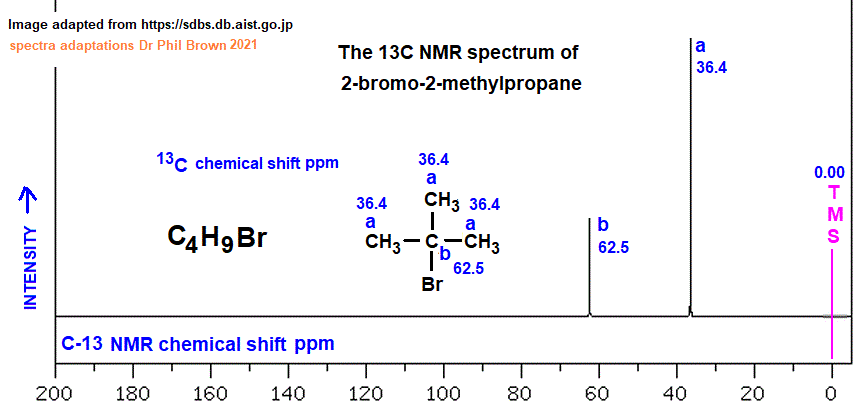

13C nmr spectrum of 2-bromo-2-methylpropane C4H9Br (CH3)3CBr tert-butyl bromide C13 carbon-13 nmr doc brown's advanced organic chemistry revision notes

TMS is the acronym for tetramethylsilane, formula Si(CH3)4, whose 13C atoms are arbitrarily given a chemical shift of 0.0 ppm. This is the 'standard' in 13C NMR spectroscopy and all other 13C resonances, called chemical shifts, are measured with respect to the TMS, and depend on the individual (electronic) chemical environment of the 13C atoms in an organic molecule - 2-bromo-2-methylpropane here.

2-bromo-2-methylpropane (tert-butyl bromide), C4H9Br, (CH3)3C-Br

The molecular structure and naming of haloalkanes

Interpreting the C-13 NMR spectrum of 2-bromo-2-methylpropane

As you can see from the diagram above there are 2 different 13C chemical shift lines in the C-13 NMR spectrum of 2-bromo-2-methylpropane indicating 2 different chemical environments of the 4 carbon atoms of 2-bromo-2-methylpropane.

(CH3)3C-Br

(Note the 2 different colours indicating the 2 different chemical environments of the 4 carbon atoms in 2-bromo-2-methylpropane).

13C chemical shifts (a) to (b) on the C-13 NMR spectrum diagram for 2-bromo-2-methylpropane.

(a) (CH3)3C-Br : 13C NMR chemical shift of 36.4 ppm for the three equivalent carbon atoms of the methyl groups due to the symmetry of the 2-bromo-2-methylpropane molecule.

(b) (CH3)3C-Br : 13C NMR chemical shift of 62.5 ppm for the carbon atom attached to the bromine atom (and methyl groups).

The carbon-13 NMR spectra provides direct evidence of 2 different carbon atom environments for the 4 carbon atoms in the 2-bromo-2-methylpropane molecule, deduced from the presence of 2 different 13C NMR chemical shifts (ppm).
Comparing the infrared, mass, 1H NMR and 13C NMR spectra of the 4 halogenoalkane isomers of C4H9Br

NOTE: The images are linked to their original detailed spectral analysis pages AND can be doubled in size with touch screens to increase the definition to the original 1-bromobutane, 2-bromobutane, 1-bromo-2-methylpropane and 2-bromo-2-methylpropane image sizes.  These four molecules are structural isomers of molecular formula C4H9Br and exemplify the infrared, mass, 1H NMR and 13C NMR spectra of lower aliphatic halogenoalkanes (haloalkanes, alkyl halides, bromoalkanes, alkyl bromides).

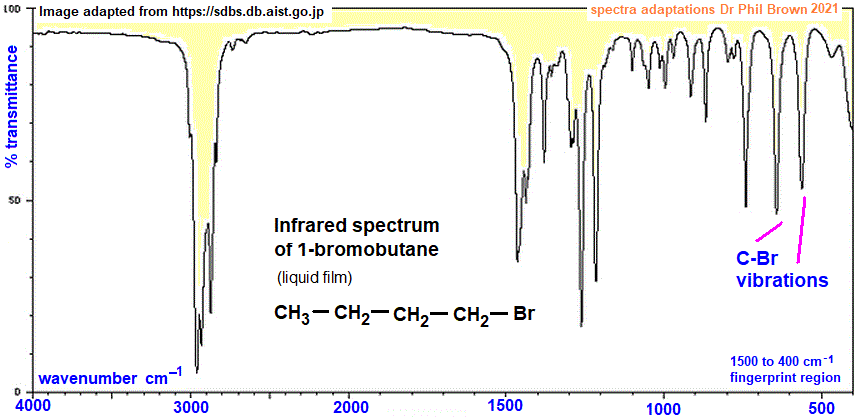

INFRARED SPECTRA (above): Apart from the significant differences in the fingerprint region at wavenumbers 1500 to 400 cm-1, there are no other great striking differences, but each could be identified from its infrared spectrum.

MASS SPECTRA (above): All four give the parent molecular ions of m/z 136 and 138, but it is only a relatively tiny peak for 2-bromobutane and 2-bromo-2-methylpropane. All four give the base ion peak of m/z 57. All four give prominent peaks for m/z ions 27, 29, 39 and 41 and all give a tiny peak from an ionised iodine atom at m/z 127. They look quite similar to me and lack a clear fingerprint fragmentation pattern. There are small differences in the relative abundances (peak heights) for pairs of ions involving 79Br/81Br isotopes e.g. m/z 93/95, 107/109 and 121/123. 1-bromo-2-methylpropane is the only one of the four to have a prominent peak for the m/z 43 ion.

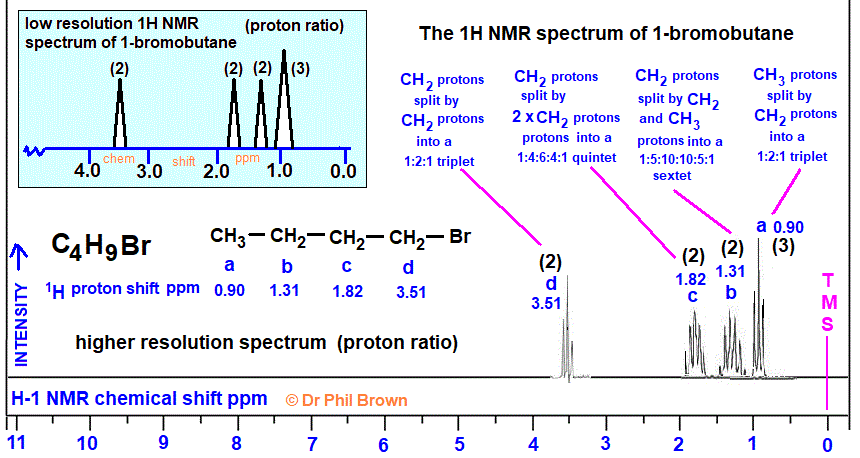

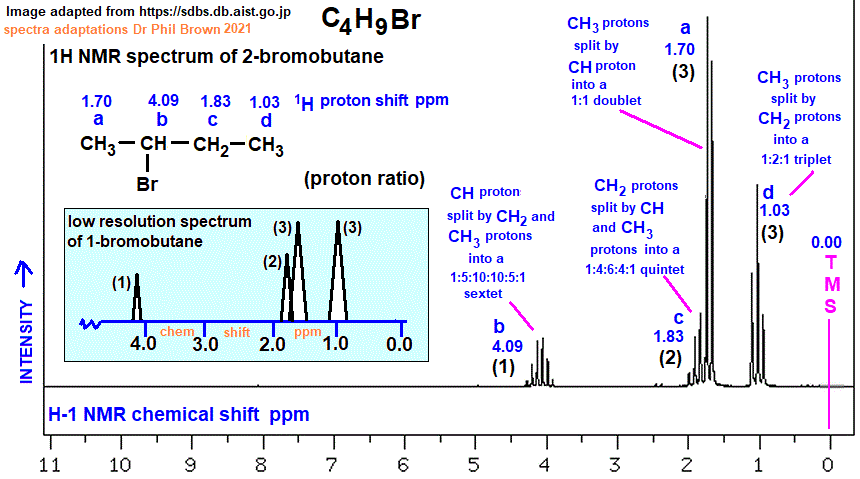

1H NMR SPECTRA (above): The 1H NMR spectra of all four molecules give different integrated proton ratios i.e.1-bromobutane four peaks of ratio 3:2:2:2; 2-bromobutane four peaks of ratio 3:3:2:1, 1-bromo-2-methylpropane three peaks of ratio 6:2:1 and 2-bromo-2-methylpropane gives just one peak '1' (effectively no ratio involved), so all four molecular structures can be distinguished from each other by their 1H NMR spectra proton ratios, numbers of peaks and (n+1) rule splitting patterns.

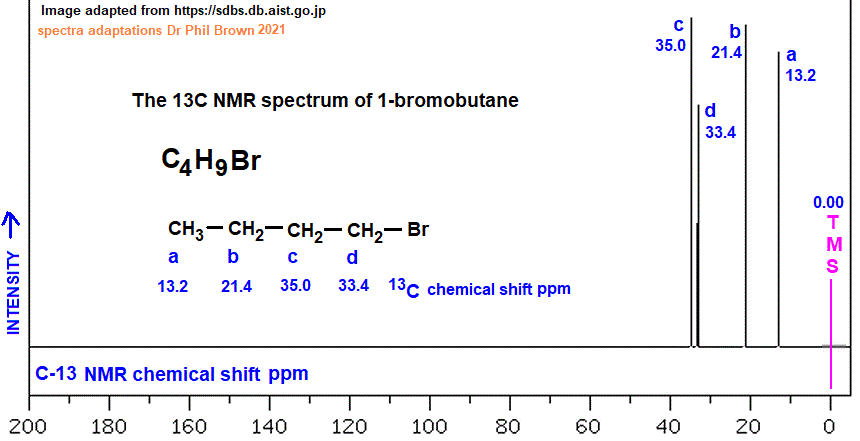

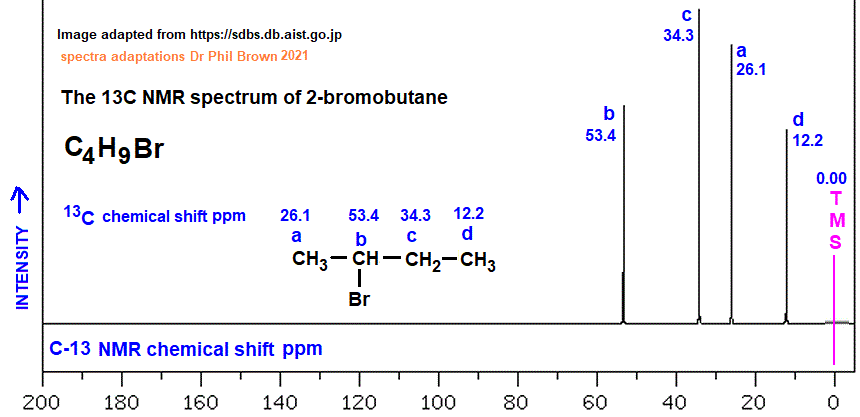

13C NMR SPECTRA (above): The 13C NMR spectra of the four molecules show various numbers of carbon-13 chemical environments i.e 1-bromobutane and 2-bromobutane show four 13C NMR resonances, 1-bromo-2-methylpropane three 13C NMR resonances and 2-bromo-2-methylpropane only two 13C resonances. Therefore 1-bromo-2-methylpropane and 2-bromo-2-methylpropane can be distinguished from the other three by their number of resonances in their 13C NMR spectra, but 1-bromobutane and 2-bromobutane cannot be distinguished from each other from their number of 13C NMR resonance lines - other data would be required.
