Interpreting the
1H NMR spectrum of 2,2-dimethylpropane
[Author
©
Dr WP Brown PhD:
Doc Brown's advanced level organic chemistry exam revision notes
suitable for students of UK A level chemistry courses & US K12 grade
11, grade 12 and AP honors chemistry courses: Molecular
spectroscopy - analysing the
1H NMR spectrum of
2,2-dimethylpropane
[updated
October 29th 2025]
email doc
brown
Re-edit
1H NMR spectrum of
C(CH3)4
This is a BIG
website, PLEASE take time to explore it
Links associated with 2,2-dimethylpropane
H-1 proton NMR spectroscopy -
spectra index
See also
comparing the infrared, mass,
1H NMR and 13C NMR
spectra of the 3 alkane isomers of C5H12
Introductory note on the 1H NMR spectra of 2,2-dimethylpropane
Students and teachers please note my explanation of the
proton NMR spectrum of 2,2-dimethylpropane is designed for advanced, but
pre-university, chemistry courses.
The chemical shift
δ splitting pattern effects for
2,2-dimethylpropane are
confined to a proton spin-spin
coupling effects analysed using the n+1 rule for adjacent
non-equivalent proton fields (n is the number of neighbouring
protons in a non-equivalent different chemical environment for the
2,2-dimethylpropane molecule).
It is assumed that the integrated intensities of the
1H
NMR δ
chemical shifts give the ratio of the protons in the different
non-equivalent chemical environments of the 2,2-dimethylpropane molecule.
The most common solvent used for investigating the 1H NMR
spectrum of compounds like 2,2-dimethylpropane, is CDCl3 and other
deuterated solvents to avoid confusion with a 1H NMR
signal, 2D (2H) has a different NMR chemical
shift.
TMS is the acronym for tetramethylsilane, formula Si(CH3)4,
whose protons are arbitrarily given a chemical shift of 0.0 ppm.
This is the 'standard' in 1H NMR spectroscopy and all
other proton shifts, called chemical shifts, depend on the
individual (electronic) chemical environment of the hydrogen atoms
in an organic molecule - 2,2-dimethylpropane here.
The chemical shifts quoted in ppm on the diagram of
the H-1 NMR spectrum of 2,2-dimethylpropane represent the peaks of the intensity of
the chemical shifts of (which are often groups of split lines at
high resolution) AND the relative integrated areas under the peaks
gives you the ratio of protons in the different chemical
environments of the 2,2-dimethylpropane molecule.
2,2-dimethylpropane C5H12
 ,
,
For more
see The molecular structure and
naming of alkanes

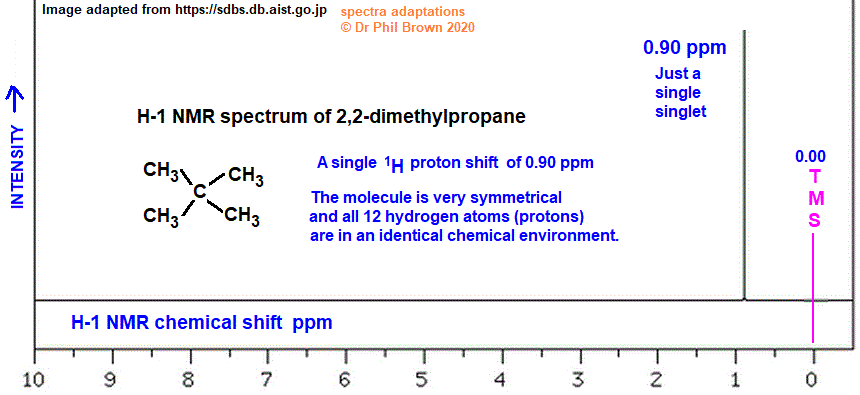

Interpreting the
H-1 NMR spectrum of
2,2-dimethylpropane
For relatively simple molecules, the low
resolution H-1 NMR spectrum of 2,2-dimethylpropane is a good starting point
(low resolution diagram above).
All 12 hydrogen atoms (protons) of
2,2-dimethylpropane occupy the same 1H chemical environment so the
NMR spectra only show one proton resonance line.
(CH3)4C
Note:
(i) Only one colour indicating the single chemical environment of
all the carbon atoms in
2,2-dimethylpropane
(ii) All the protons of the four methyl
groups are in an identical chemical environment due to the
symmetry of the molecule, the >C< tetrahedral bond
network from the central carbon atom and the symmetry of a
methyl group too.
(iii) There is NO proton
spin-spin coupling resonance splitting effect
as non of the adjacent protons are 'non-equivalent',
equivalent proton fields in an identical chemical
environment cannot split each others fields.
Key
points about the 1H NMR spectrum of 2,2-dimethylpropane
The ¹H NMR spectrum of 2,2-dimethylpropane shows a single sharp
singlet at ~0.9 ppm, integrating for 12 equivalent protons.
This reflects its high symmetry and lack of chemically distinct
hydrogen environments.
Key
Features of the ¹H NMR Spectrum
2,2-Dimethylpropane (neopentane, C5H12)
is a highly symmetrical molecule with four methyl groups bonded to a
central quaternary carbon. This leads to:
- Only one type of proton
environment: All 12
hydrogen atoms are in equivalent methyl groups.
- Single peak:
Appears as a singlet due to no neighboring protons for spin-spin
coupling.
- Upfield chemical shift:
Typical of shielded alkyl protons.
Chemical
Shifts and Integration Table
| Chemical Shift (δ,
ppm) |
Proton Type |
Environment |
Multiplicity |
Integration |
| 0.90 ppm |
CH3 (methyl) |
Four equivalent CH3
groups |
Singlet |
12H |
Sources:
https://sdbs.db.aist.go.jp/
diagram 1H
δ ppm
spectral database of organic compounds
Common
Misconceptions
- Expecting multiple peaks:
Students may wrongly expect separate signals for each methyl
group—symmetry makes them equivalent.
- Looking for splitting:
No adjacent protons means no splitting; the singlet is correct.
- Misidentifying integration:
The integration reflects 12 protons, not 3 or 6—each of the four CH₃
groups contributes 3 protons.
Exam
Revision Tips
For A-levels (AQA, Edexcel, OCR,
WJEC, CCEA), CIE, IB, and US AP Chemistry:
- Use symmetry to predict
peak count: Highly
symmetrical molecules often show fewer signals than expected.
- Link integration to
structure: Count total
equivalent protons—here, 4 CH3 × 3 H = 12H.
- Recognize singlets in
alkanes: Methyl groups
with no adjacent protons give singlets.
- Practice with isomers:
Compare ¹H NMR of pentane, 2-methylbutane, and 2,2-dimethylpropane
to see how branching affects peak number and splitting.
- Use NMR to confirm
identity: A single
singlet at ~0.9 ppm strongly suggests a highly symmetrical alkane
like neopentane.
Tips for
spotting equivalent methyl group protons in 1H NMR
e.g. 4 methyl groups in 2,2-dimethylpropane
- Check for identical
attachments: If two
or more methyl groups are bonded to the same carbon and that carbon is not
chiral, they are usually equivalent.
- Look for symmetry:
Even partial symmetry can lead to
equivalence.
- Use integration clues:
If two methyl groups give a single peak with integration of 6H (3
gives 9H), that's a strong hint they are equivalent.
- Compare with isomers:
Try contrasting with
2,2-dimethypropane
with isomeric 3-methylbutane, where methyl
proton environments differ more clearly.
- Counting methyls as
separate signals:
Leads to overestimating the number of peaks in ¹H NMR spectra.
- Assuming all methyls are
equivalent: Not true
in asymmetric or chiral environments.
- Ignoring branching effects:
Branching can create or remove equivalence depending on the
substitution pattern.
The splitting pattern from proton
spin-spin coupling effects is analysed using the n+1 rule for
adjacent non-equivalent proton fields (n is the number of
neighbouring protons in a non-equivalent different chemical
environment).
|
Number of protons 1H
causing splitting |
Splitting pattern produced from the
n+1 rule and the theoretical ratio of line intensities |
|
0
means no splitting |
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
1
creates a doublet |
|
|
|
|
|
1 |
|
1 |
|
|
|
|
|
|
2
creates a triplet |
|
|
|
|
1 |
|
2 |
|
1 |
|
|
|
|
|
3
creates a quartet |
|
|
|
1 |
|
3 |
|
3 |
|
1 |
|
|
|
|
4
creates a quintet |
|
|
1 |
|
4 |
|
6 |
|
4 |
|
1 |
|
|
|
5
creates a sextet |
|
1 |
|
5 |
|
10 |
|
10 |
|
5 |
|
1 |
|
|
6
creates a septet |
1 |
|
6 |
|
15 |
|
20 |
|
15 |
|
6 |
|
1 |
|
Comparing the infrared, mass, 1H NMR and 13C NMR
spectra of the 3 alkane isomers of C5H12
NOTE: The images are linked to their
original detailed spectral analysis pages AND can be doubled in
size with touch screens to
increase the definition to the original pentane,
2-methylbutane and 2,2-dimethylpropane image sizes. |
 |
 |
 |
Comparing the
infrared
spectra of pentane, 2-methylbutane and 2,2-dimethylpropane
Pentane,
2-methylbutane and 2,2-dimethylpropane
are structural isomers of molecular formula C5H12
Pentane,
2-methylbutane and 2,2-dimethylpropane
exemplify infrared spectra of the alkane homologous series CnH2n+2
hydrocarbon
molecules, where n = 5 |
|
INFRARED SPECTRA
(above): There are, as expected, differences in the fingerprint region at
wavenumbers 1500 to 400 cm-1, but there is no
specific infrared absorption band for a functional group. The
infrared spectra of pentane and 2-methylbutane seem very
similar, but that of 2,2-dimethylpropane seems much simpler. |
 |
 |
 |
Comparing the
mass
spectra of pentane, 2-methylbutane and 2,2-dimethylpropane
Pentane,
2-methylbutane and 2,2-dimethylpropane
are structural isomers of molecular formula C5H12
Pentane,
2-methylbutane and 2,2-dimethylpropane
exemplify the mass spectra of the alkane series CnH2n+2
hydrocarbon
molecules, where n = 5 |
|
MASS SPECTRA (above):
All three hydrocarbons show some similarities in their mass
spectra e.g. m/z ions 27 to 29 for [C2Hx]+
(x = 2 and 4). The molecular ion peaks will
be the same for all three isomers (m/z 72),
but it is very tiny for 2,2-dimethypropane. The pattern ratios
for m/z 39 to 43 are similar for pentane and 2-methylbutane, but
m/z 42 and 43 ions are almost absent from the
2,2-dimethylpropane spectrum. The base peak ion for pentane is
m/z 43, but for 2-methylbutane and 2,2-dimethylpropane it is m/z
57. |
 |
 |
 |

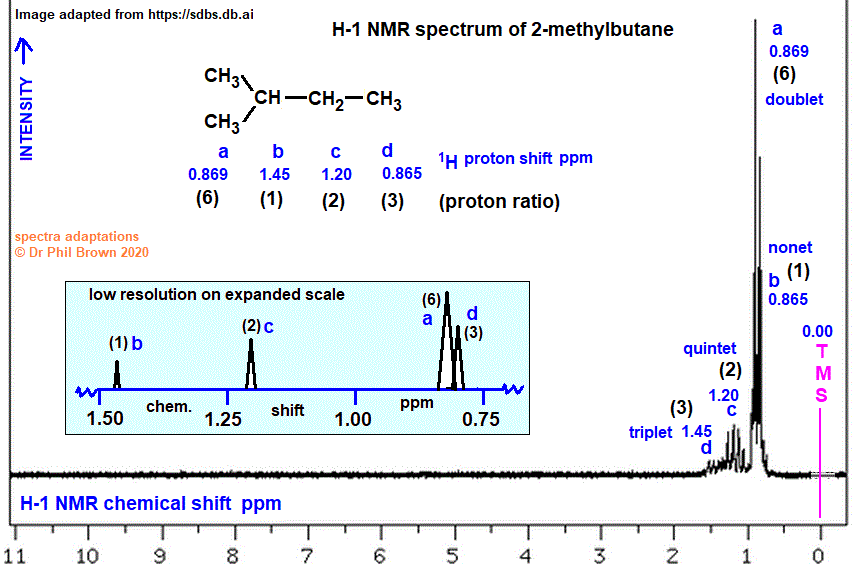

Comparing the
1H proton NMR
spectra of pentane, 2-methylbutane and 2,2-dimethylpropane
Pentane,
2-methylbutane and 2,2-dimethylpropane
are structural isomers of molecular formula C5H12
Pentane,
2-methylbutane and 2,2-dimethylpropane exemplify the 1H proton NMR spectra of the alkane
homologous series CnH2n+2
hydrocarbon
molecules where, n = 5 |
|
1H NMR SPECTRA (above): The 1H NMR spectra of
all three molecules give different proton ratios for the
different 1H chemical environments i.e. pentane's
proton ratio is 3:2:1 (from 6:4:2 H's in the molecule).
2-methylbutane's proton ratio is 6:1:2:3 and
2,2-dimethylpropane's doesn't have a proton ratio, all hydrogen
atoms are equivalent. This means all three isomeric C5H12
hydrocarbons can be distinguished from their 1H NMR spectra. |
 |
 |
 |
Comparing the
carbon-13 NMR
spectra of pentane, 2-methylbutane and 2,2-dimethylpropane
Pentane,
2-methylbutane and 2,2-dimethylpropane
are structural isomers of molecular formula C5H12
Pentane,
2-methylbutane and 2,2-dimethylpropane exemplify the carbon-13 NMR spectra of
members of the alkane homologous series CnH2n+2
hydrocarbon
molecules, where n = 5 |
|
13C NMR SPECTRA
(above): The
13C NMR spectra of the three molecules show different numbers of
carbon-13 chemical environments i.e different numbers of 13C NMR
resonance lines. So, pentane gives three 13C chemical
shifts,
2-methylbutane four and 2,2-dimethylpropane two. This means all
three isomeric C5H12 hydrocarbons can be
distinguished from their 13C NMR spectra. |
Key words & phrases: neopentane
dimethylpropane
Interpreting the proton H-1 NMR spectra of 2,2-dimethylpropane, low resolution & high resolution proton
nmr spectra of 2,2-dimethylpropane, H-1 nmr spectrum of 2,2-dimethylpropane, understanding the
hydrogen-1 nmr spectrum of 2,2-dimethylpropane, explaining the line splitting patterns in the
high resolution H-1 nmr spectra of 2,2-dimethylpropane, revising the H-1 nmr spectrum of
2,2-dimethylpropane,
proton nmr of 2,2-dimethylpropane, ppm chemical shifts of the H-1 nmr spectrum of
2,2-dimethylpropane,
explaining and analyzing spin spin line splitting in the H-1 nmr spectrum, how
to construct the diagram of the H-1 nmr spectrum of 2,2-dimethylpropane, how to work out the
number of chemically different protons in the structure of the
2,2-dimethylpropane organic
molecule, how to analyse the chemical shifts in the hydrogen-1 H-1 proton NMR
spectrum of 2,2-dimethylpropane using the n+1 rule to explain the spin - spin coupling
spin
splitting in the proton nmr spectrum of 2,2-dimethylpropane deducing the nature of the protons
from the chemical shifts ppm in the H-1 nmr spectrum of 2,2-dimethylpropane
examining the 1H nmr spectrum of 2,2-dimethylpropane analysing the 1-H nmr spectrum of
2,2-dimethylpropane how do you sketch and interpret the H-1 NMR spectrum of
2,2-dimethylpropane neopentane dimethylpropane
Molecular structure diagram of the
proton NMR diagram for the 1H NMR spectrum of 2,2-dimethylpropane. The proton ratio in the
1H NMR spectrum of 2,2-dimethylpropane. Deducing the number of different chemical
environments of the protons in the 2,2-dimethylpropane molecule from the 1H chemical shifts
in the hydrogen-1 NMR spectrum of 2,2-dimethylpropane. Analysing the high resolution 1H NMR
spectrum of 2,2-dimethylpropane. Analysing the low resolution 1H NMR spectrum of
2,2-dimethylpropane. You
may need to know the relative molecular mass of 2,2-dimethylpropane to deduce the molecular
formula from the proton ratio of the 1H NMR spectrum of 2,2-dimethylpropane. Revision notes
on the proton NMR spectrum of 2,2-dimethylpropane. Matching and deducing the structure of
the 2,2-dimethylpropane molecule from its hydrogen-1 NMR spectrum.
Proton NMR spectroscopy of aliphatic alkanes,
1H NMR spectra of 2,2-dimethylpropane, an isomer of molecular formula
C5H12
How do you interpret the H-1 NMR spectrum of
2,2-dimethylpropane How to interpret
the H-1 NMR spectrum of 2,2-dimethylpropane Explanatory diagram of the chemical
shifts of the 1H H-1 proton NMR spectrum of the
2,2-dimethylpropane
molecule in terms of its molecular structure. Listing data of all the chemical shift peaks in ppm in the
proton NMR spectrum of 2,2-dimethylpropane. How to explain the H-1 NMR spectrum of
2,2-dimethylpropane. The chemical shifts and integrated values of the proton ratios in the 1-H NMR
spectrum of the 2,2-dimethylpropane molecule. How to work out the molecular
structure of the 2,2-dimethylpropane molecule from its proton NMR spectrum. The uses
and distinctive features of the proton NMR spectrum of the
2,2-dimethylpropane
molecule explained. What does the H-1 proton NMR spectrum chemical
shifts tell us about the
structure and properties of the 2,2-dimethylpropane
molecule? explaining the spin-spin proton coupling effects in the 1H
NMR spectrum of 2,2-dimethylpropane.
interpretation
diagram explaining the proton splitting
pattern produced from the n+1 rule and the theoretical ratio of chemical shift
and values of intensities for the proton NMR spectrum lines of
2,2-dimethylpropane
Links associated
with
2,2-dimethylpropane
The chemistry of ALKANES
revision notes INDEX
The infrared spectrum for 2,2-dimethylpropane
The mass spectrum for 2,2-dimethylpropane
The C-13 NMR spectrum for 2,2-dimethylpropane
H-1 proton NMR spectroscopy index
(Please
read 8 points at the top of the 1H NMR index page)
ALL SPECTROSCOPY INDEXES
All Advanced Organic
Chemistry Notes
Use My Google search site box
Email doc b:
chem55555@hotmail.com
Website content © Dr
Phil Brown 2000+. All copyrights reserved on revision notes, images,
quizzes, worksheets etc. Copying of Doc Brown's pre-university
advanced level chemistry website material is NOT
permitted. Exam revision summaries & references to science course specifications
are unofficial. These organic chemistry revision notes on
spectroscopy are
suitable for use of pre-university students studying AQA advanced level
chemistry, Edexcel advanced level chemistry, OCR advanced level
chemistry, IB advanced level chemistry, WJEC (Eduqas) advanced level
chemistry, CIE advanced level chemistry, US grade 11-12 AP honors
chemistry courses and they will also prove useful to
1st year undergraduate students of chemistry. |
