Interpreting and explaining the
13C NMR spectrum of
2-chlorobutane
[Author
©
Dr
Phil Brown PhD:
Doc Brown's advanced level organic chemistry exam revision notes
suitable for students of UK A level chemistry courses & US K12 grade
11, grade 12 and AP honors chemistry courses: Molecular
spectroscopy - analysing the
C-13 NMR spectrum of 2-chlorobutane
[updated
Mar 12th 2026 *]
*
email doc
brown *
[privacy,
cookies & disclaimer policies] * Re-edit
analysis C-13 NMR spectrum of
CH3CH2CHClCH3
Links associated
with 2-chlorobutane
The
chemistry of organic halogen compounds
This is a BIG
chemistry website, please take time to explore it
C-13
NMR spectroscopy - spectra index
See also
Comparing infrared, mass, 1H NMR & 13C NMR
spectra of the 4 structural isomers of C4H9Cl
Introductory note on the 13C NMR spectrum of 2-chlorobutane
Students and teachers please note that my explanation of the
carbon-13 NMR spectrum of 2-chlorobutane is designed for advanced, but
pre-university, chemistry courses.
The description does not involve
the chemical shift δ
spin-spin coupling effects for 2-chlorobutane and the relative size of the carbon-13
NMR shifts does not give the ratio of the carbon atoms in the
different non-equivalent chemical environments of the 2-chlorobutane molecule.
The most common solvent used for investigating the 1H NMR
spectrum of compounds like 2-chlorobutane, is CDCl3 and other
deuterated solvents.
TMS is the acronym for tetramethylsilane, formula Si(CH3)4,
whose 13C atoms are arbitrarily given a chemical shift of 0.0
ppm. This is the 'standard' in 13C NMR spectroscopy and all other
13C resonances, called chemical shifts, are measured with
respect to the TMS, and depend on the
individual (electronic) chemical environment of the 13C atoms in
an organic molecule - 2-chlorobutane here.
 ,
 ,
 ,
 ,
2-chlorobutane
For more see
Molecular structure, classification and
naming of
halogenoalkanes (haloalkanes)

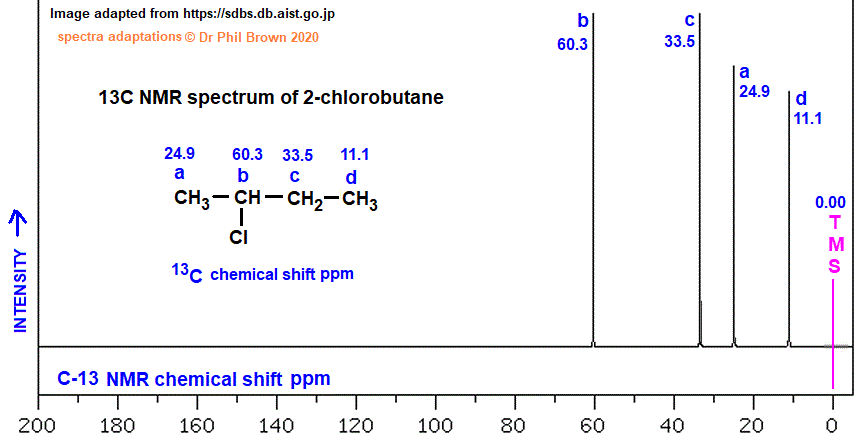

Interpreting the C-13 NMR spectrum of 2-chlorobutane
As you can see from the diagram above there are
4 different chemical shift lines in the C-13 NMR spectrum of
2-chlorobutane
indicating 4 different chemical environments of the 4 carbon
atoms of 2-chlorobutane.
CH3CHClCH2CH3
(Note the 4 different colours indicating the
4 different chemical environments of the carbon atoms in
2-chlorobutane).
13C chemical shifts
(a) to (d) on the C-13 NMR
spectrum diagram for 2-chlorobutane.
Note the decreasing effect on the 13C chemical shift as the
carbon atom is further from the more electronegative chlorine atom in 2-chlorobutane.
The carbon-13 NMR spectra provides direct evidence of
4 different carbon atom environments for the 4 carbon atoms in the
2-chlorobutane molecule,
deduced from the presence of 4 different 13C chemical
shifts (ppm).
Summary of key points for
the C-13 NMR spectrum of 2-chlorobutane plus extra exam revision
comments
The ¹³C NMR spectrum of 2-chlorobutane with precision
and exam clarity.
Key Carbon
Environments for
the C-13 NMR spectrum of
2-chlorobutane
2-Chlorobutane (CH3CHClCH2CH3) contains
four distinct carbon environments, each with characteristic
chemical shifts due to their bonding and proximity to electronegative atoms.
|
Label |
Environment |
Shift δ (ppm) |
Origin / Description |
|
b |
CH adjacent to Cl |
45–55, 60.3 ppm |
Deshielded by electronegative Cl |
|
c |
CH2 next to CHCl |
25–35, 33.5 ppm |
Slightly deshielded alkyl carbon |
|
a |
CH3 next to CHCl |
15–20, 24.9 ppm |
Methyl group near substituted carbon |
|
d |
CH3 at terminal end |
10–15, 11.1 ppm |
Standard methyl group |
CH3CHClCH2CH3
These values may vary slightly depending on solvent and instrument, but
the downfield shift of the CHCl carbon is a key diagnostic
feature.
Common
Misconceptions about
the C-13 NMR spectrum of
2-chlorobutane
(see also below)
- Assuming symmetry: Students may incorrectly assume the
two CH3 groups are equivalent—they’re not, due to the asymmetric
substitution.
- Overinterpreting peak heights: Unlike ¹H NMR,
peak intensity in ¹³C NMR is not proportional to the number of carbons.
- Ignoring electronegativity effects: The carbon bonded
to Cl is significantly deshielded—mistaking this for a carbonyl or aromatic
shift is a common error.
Exam Revision Tips
for questions involving
the C-13 NMR spectrum of
2-chlorobutane
(see also above)
- Count unique environments: Expect four signals for
2-chlorobutane—each carbon is in a distinct environment.
- Use chemical shift logic: Downfield shifts suggest
proximity to electronegative atoms like Cl, O, or N.
- Don’t rely on peak height: Focus on number and
position of peaks, not their intensity.
- Compare with ¹H NMR or IR: If asked about limitations,
suggest complementary techniques for full structural analysis.
- Be ready to distinguish isomers: Use number of signals
and shift values to differentiate between 1-chlorobutane and 2-chlorobutane.
|
Comparing the infrared, mass, 1H NMR and 13C NMR
spectra of the 4 halogenoalkane isomers of C4H9Cl
NOTE: The images are linked to their
original detailed spectral analysis pages AND can be doubled in
size with touch screens to
increase the definition to the original 1-chlorobutane,
2-chlorobutane, 1-chloro-2-methylpropane and 2-chloro-2-methylpropane
image sizes. These four molecules
are structural isomers of molecular formula C4H9Cl
and
exemplify the infrared, mass, 1H NMR and 13C NMR spectra of lower
aliphatic halogenoalkanes (haloalkanes, alkyl halides,
chloroalkanes, alkyl chlorides). |
 |
 |
 |
 |
|

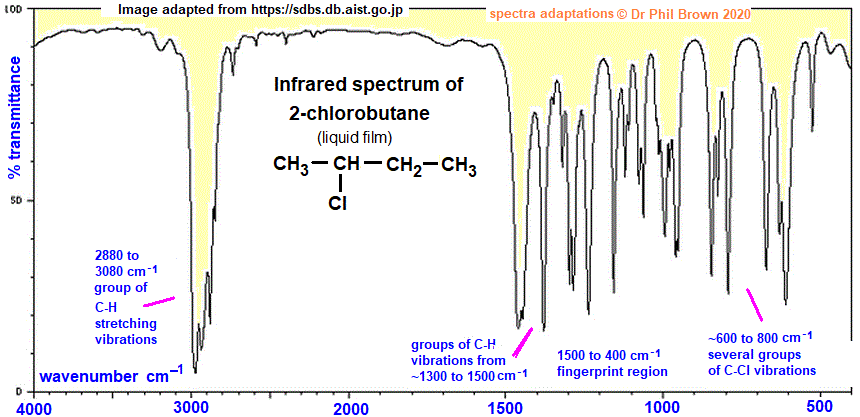

INFRARED SPECTRA
(above):
Apart from the significant differences in the fingerprint region at
wavenumbers 1500 to 400 cm-1, there are no other
great striking differences, but each could be identified from
its infrared spectrum. The infrared spectrum of
2-chloro-2-methylpropane is noticeably simpler in the
fingerprint region, perhaps due to
the greater symmetry of the molecule. |
 |
 |
 |
 |
|

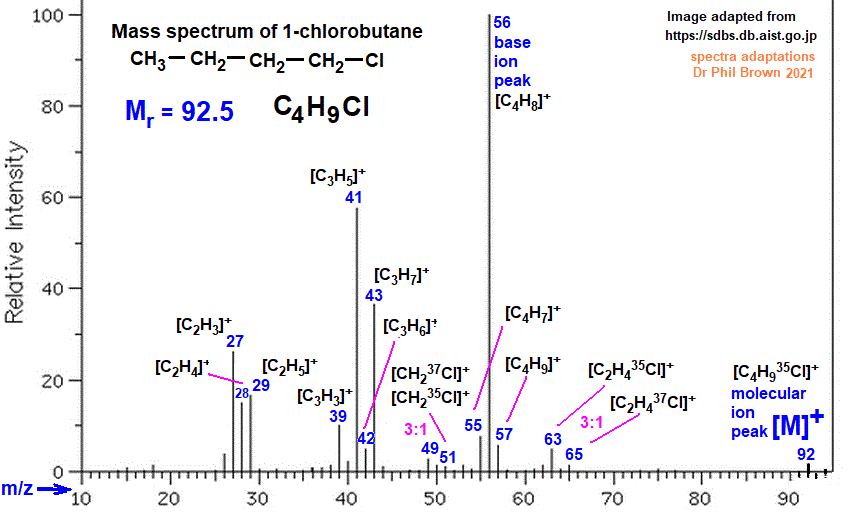

MASS SPECTRA (above):
Theoretically, all four can give the parent molecular ions of
m/z 92 and 94, but they are all relatively tiny peaks.
2-chlorobutane and 2-chloro-2-methylpropane give a base ion peak
of m/z 57. The base ion peak for 1-chlorobutane is m/z 56 and
that of 1-chloro-2-methylpropane is m/z 43. Each gives different
patterns of pairs of m/z values two mass units apart, in the
peak height ratio of 3:1, if the positive fragment contains a
chlorine atom (35Cl or 37Cl) e.g look for
m/z pairs 49/51, 63/65 and 77/79 in their mass spectra. |
 |
 |
 |
 |
|

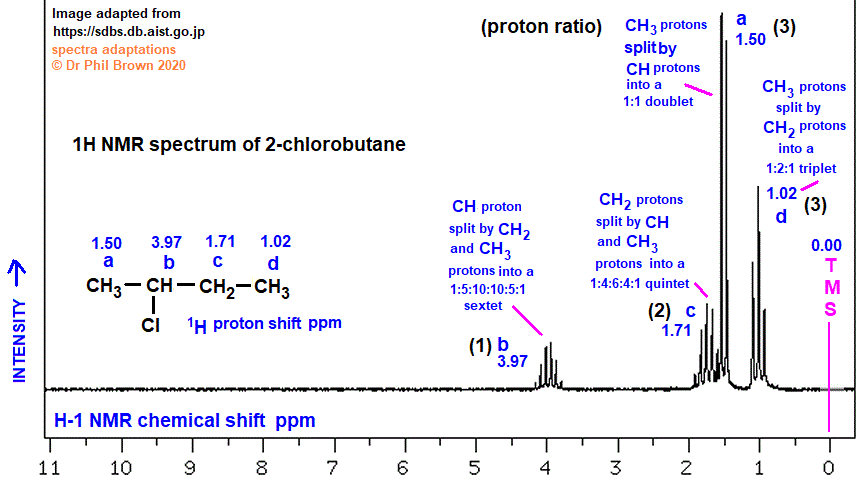

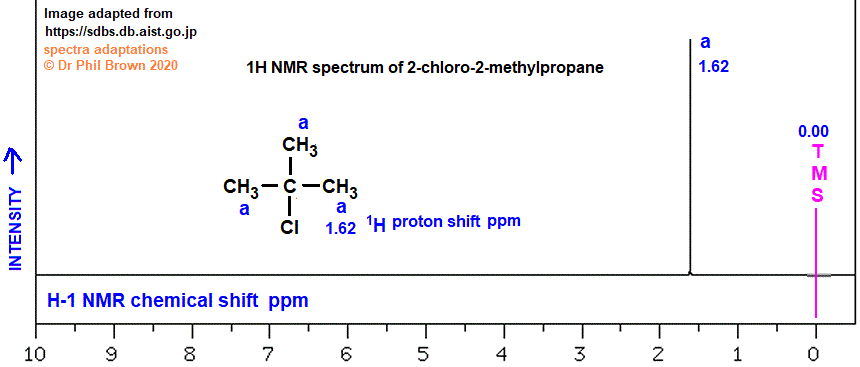

1H NMR SPECTRA
(above): The 1H NMR spectra of all four molecules give different
integrated proton ratios i.e.1-chlorobutane
four peaks of ratio 3:2:2:2; 2-chlorobutane four peaks of
ratio 3:3:2:1,
1-chloro-2-methylpropane three peaks of ratio 6:2:1 and
2-chloro-2-methylpropane gives just one peak '1' (effectively no ratio
involved), so all four molecular structures can be distinguished from each other by their
1H NMR spectra proton ratios, numbers of peaks and (n+1)
rule splitting patterns. |
 |
|
 |
 |
|

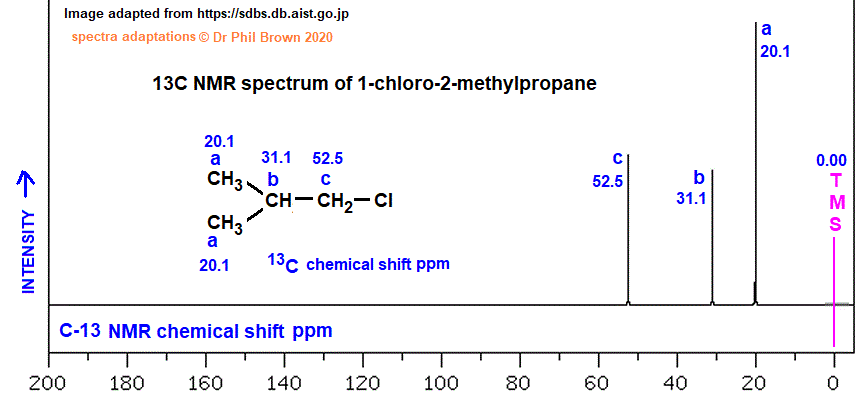

13C NMR SPECTRA
(above): The
13C NMR spectra of the four molecules show various numbers of
carbon-13 chemical environments i.e 1-chlorobutane and
2-chlorobutane show four 13C NMR resonances,
1-chloro-2-methylpropane three 13C NMR resonances and
2-chloro-2-methylpropane only two 13C resonances (3 and 2
chemical environments respectively. Therefore
1-chloro-2-methylpropane and 2-chloro-2-methylpropane can be
distinguished from the other three by their number of resonances
in their 13C NMR spectra, but 1-chlorobutane and 2-chlorobutane
cannot be distinguished from each other from their number of 13C
NMR resonance lines - other data would be required. |
